LCD display for Chevrolet Corvette 1984-1989 (Middle Display)
Car Make / Model: Chevrolet Corvette 1984-1989 Application: Instrument cluster/Dashboard
Application&Models

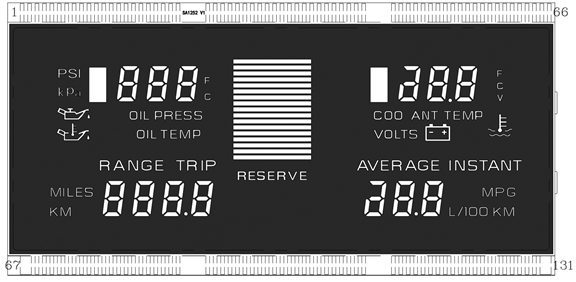

SA1252 - LCD display for Chevrolet Corvette 1984-1989 (Middle Display)
Application
Instrument Cluster / Dashboard
Model
Chevrolet Corvette 1984-1989
Specifications
| Product Name | Middle lcd Screen Display For Chevrolet Corvette Digital Dash Gauge Instrument Cluster |
| Item | Middle lcd Screen Display For Chevrolet Corvette |
| Brand Name | SACER |
| Model Number | SA1252 |
| Car Model | Chevrolet Corvette 1984-1989 |
| Application | Tachometer & Speedometer & Pressure Gauge |
| Condition | 100% Brand New product |
| Display Size | 124.3mm*111mm*2.8mm |
| FPC Size | No FPC. |
| Advantages | 1.Better contrasts and No Dead pixel problems,No Lights flickering. |
Kindly Verify the model year of the dashboard ,Sacer only sells the LCD Display Repair Parts .Not the whole cluster.This is not a compelete dashboard.
Model year of cluster could be determined by the cluster tachometer LCD | |
| Year | Frendly Tips |
| 1989 | Upshift arrow SHOULD "one to four" |
| From 1987 to 1988 | upshift arrow "upshift for best economy" AND "OD" symbol near LCD center |
| 1985 | upshift arrow "for best economy" |
| 1986 | no upshift arrow |
| 1984 | Unique pattern (smaller) with sharp curve at top of tachmeter sweep |
Features
Description
This is Middle Display.
The Right Display: SA1251
The Left Display:SA1253
1 Features
a) Redesign and quality improved
b) Wide temperature
c) 100% test pass before package
« LCD Specification
Item | Value |
Working Temperature | -20℃ to 70℃ |
Storage Temperature | -40℃ to 85℃ |
Viewing Direction | 12 o’clock(after assembled) |
2 View direction (12 o’clock)
3 Construction of LCD ( normal STN and OCG type )
| 1．Polarizer 2．ITO Glass 3．Main Seal 4．Liquid Crystal 5．Spacer 6．PI 7． End Seal 8． UV Curing Resins 9． PIN |
4 application method：Silicone Rubber type
5 Silicone Rubber Type
Silicone rubber type normally is connect by a silicone rubber that connect wire inside, and for this kind of display, it is total glass.
a) Start use
Step 1. Clean the connect part on both display and dashboard (or PCB), normally use alcohol or CRAMOLIN spraywash.
Step 2. Put on the display and confirm direction is OK.
b) Notice
1) If pixel miss after assembly, please open and check if connect well.
a small batch customized
