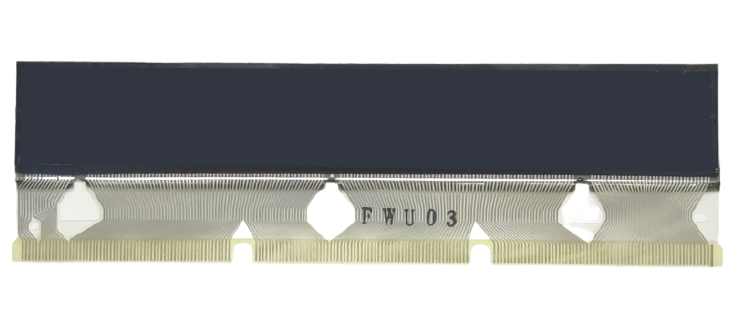

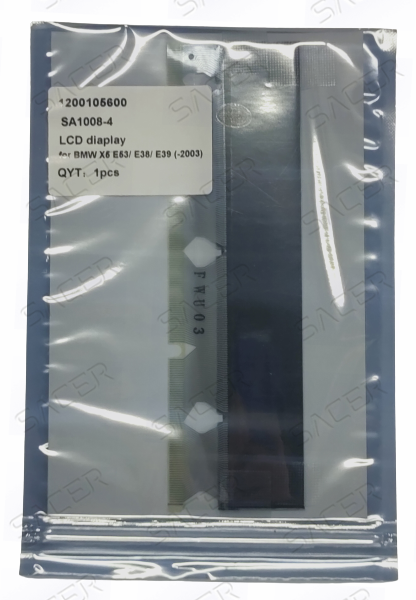

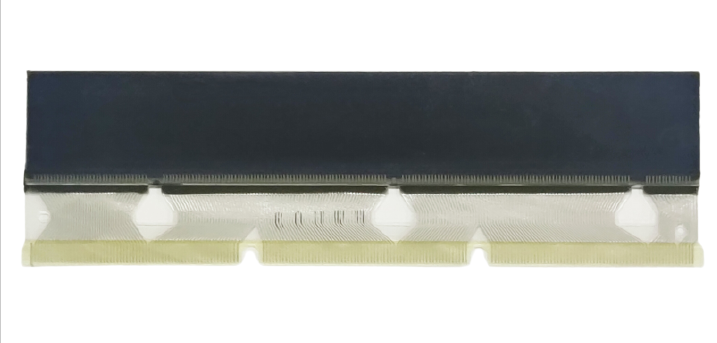

Mirror surface LCD display with ribbon / flat cable for BMW X5 E53 / E38 / E39(-2003)
Application: Instrument Cluster / dashboard Model: BMW E53 (X5), E38 (7-series), E39 (5-series)(-2003) Exceptions: LCD screen with ribbon cable Need heat bonding machine to mount on PCB Type: VA; View direction: 6 o 'clock,Mirror surface.How does it differ from Sa1008-4/Sa1008-5? Only technique on surface leads to a little difference on contrast effect.
| Quantity(Pcs) | Unit Price(US$) | |
|---|---|---|
| 1+ | 17.00 | |
| 10+ | 14.17 | |
For more quantity price, please contact our customer service. | ||
Application&Models

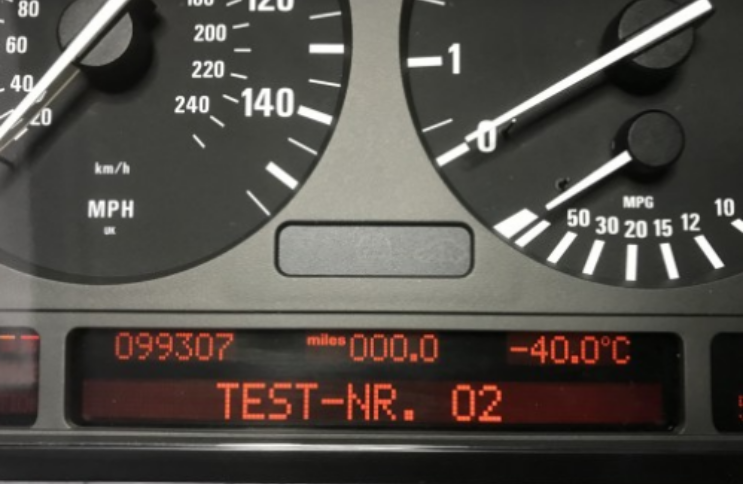

Item - LCD display with ribbon / flat cable for BMW X5 E53 / E38 / E39(-2003) instrument cluster repair
Application
Instrument Cluster / Dashboard

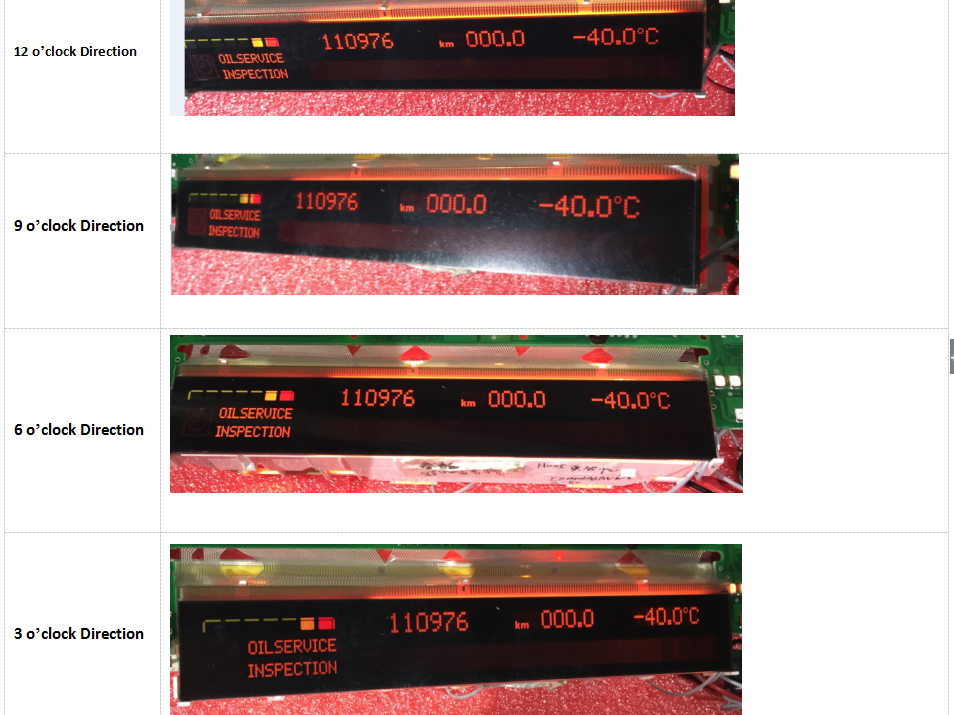

Type: VA; View direction: 6 o 'clock
Model
BMW E53 (X5), E38 (7-series), E39 (5-series)(-2003)
Specifications
| Item Number | SA1008-4 |
| Glass Dimension | 169.8*49.2*2.15mm |
| Connect Type | Heat Seal, Heat Bonding to PCB Side |
| Applied Position | Instrument Cluster / Dashboard |
| Storage Temperature | -30℃ to 80℃ |
| Operation Temperature | -20℃ to 70℃ |
| Warranty | 2 years |
Features
1. Same as OE design, Perfect brightness and contrast.
2. Silver ribbon cable / connector, better quality and longer life time.
3. Withstand high and low temperature -70℃ to 20℃
4. Easy installation and bonding

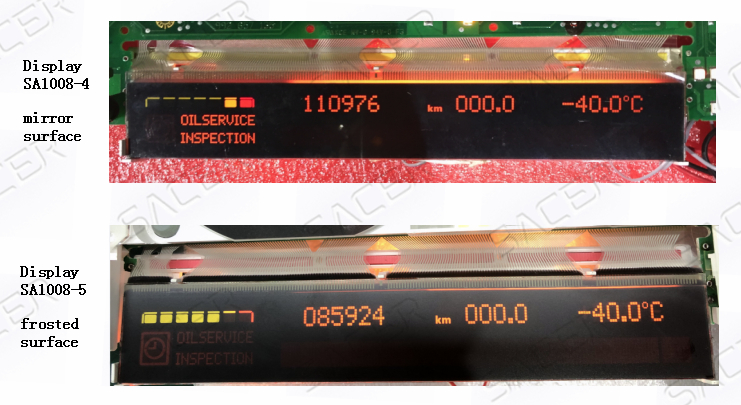

Difference between SA1008-4 and SA1008-5 :
Advantages
-
European design and quality standards. ( IATF16949 , ISO9001 , VDA6.3 , APQP. )
-
Full training and technical service available
a small batch customized
