LCD display with FPC for Audi TT, A2, A3 ,A4, A6 VDO group

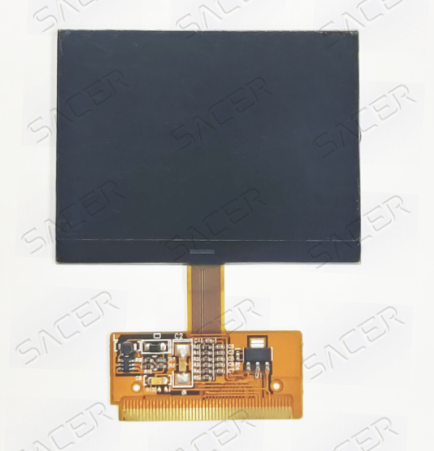

LCD screen with FPC and IC driver. Application: Instrument Cluster / dashboard Normal sldering machine with very patient skills is necessary. The only different between SA1003-3 & SA1018-3 is the shape of flat.
The opearation temperature for SA1003-3 is from -20℃ to 70℃,for SA1003-4 LCD,it's from -30℃ to 80℃.Which is widen the using temperature.
| Quantity(Pcs) | Unit Price(US$) | |
|---|---|---|
| 1+ | 14.61 | |
| 10+ | 13.91 | |
For more quantity price, please contact our customer service. | ||
Application&Models
SA1003-3 - LCD display with FPC for Audi TT, A2, A3 ,A4, A6 VDO group
Application
Instrument Cluster / Dashboard
Model
Audi A2 VDO / A3 VDO/ A4 VDO/ A6 VDO/ TT,
Seat Alhambra / Ibiza / Leon (until 2004),
Skoda Fabia / Octavia, Ford Galaxy (until 2005),
Specifications
| Item Number | SA1003-3 |
| Glass Dimension | 74.7*58.2*2.2mm |
| Connect Type | Soldering |
| Connector Type | FPC |
| Applied Position | Instrument Cluster / Dashboard |
| Storage Temperature | -30℃ to 80℃ |
| Operation Temperature | -20℃ to 70℃ |
| Warranty | 2 years |
Features
1. Same TAB IC driver as OE. Need to clean the PIN from PCB side before soldering.
2. Normal soldering machine with very patient skills would be necessary.
3. If you could remove the OE IC driver from display well for resoldering process, Sacer could provide LCD display with FPC seperately for you.
4. Difference between SA1003-3 & SA1018-3: Same LCD display but different shape of FPC connector, compatible car models are also different.
5. 100% Brand New product and tested prior to leaving the factory.
Advantages
1. All new design, comparable to the original, perfect brightness, superior color.
2. Work well in the temperature of -20℃ to 70℃.
3. Full Function OQC test and confirm every piece is qualified.
4. Circuit protection design, 2 years European warranty.
Installation

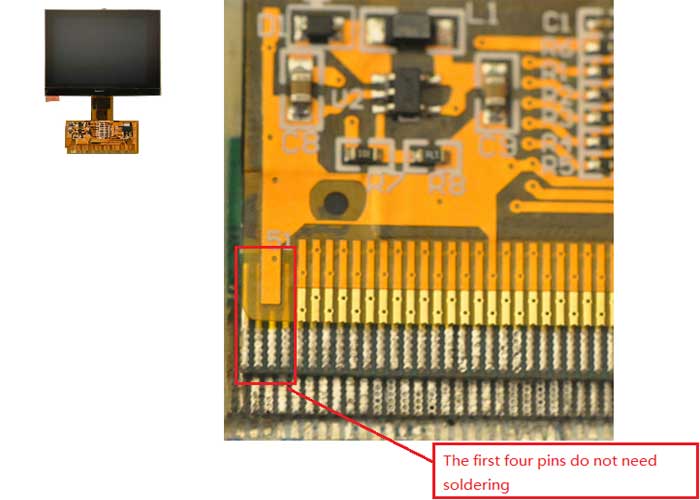

If used in the VDO models, for soldering, as the picture shows, aligned and soldering the right pins, the left four pins do not need soldering.
